Automatic Mortar Mixer

Product Code

M2420

Automatic Mortar Mixer, 220-240 V 50/60 Hz

M2420/110

Automatic Mortar Mixer, 110 V 60 Hz

M2420/01

Spare Bowl for M2420

M2420/02

Spare Beater for M2420

Standards

ASTM C305 | EN 196-1 ,196-3,1015-2,413-2,459-2-EN 12687-35

General Description

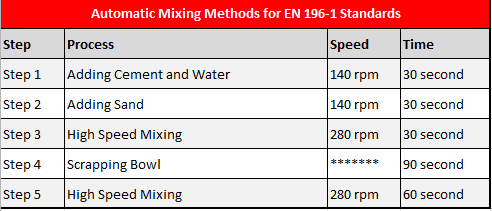

The M2420 Automatic Mortar Mixer is has been designed to mix mortars and cement pastes primarily to the requirements of standards. The mixer capacity is 5 liters. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and custom designed programs or manual mode. The mixing paddle revolves at a rate of 140 and 285 (r.p.m. clockwise) with a planetary motion of 62 and 125(r.p.m. clockwise) in low speed. Can be set motor speed, sand dispenser position and duration with mixer program.
The Automatic Mortar Mixer is supplied complete with;
• Bowl, 5 L (approx.)
• Beater

Specifications

Dimensions

400x580x650 mm

Weight (approx)

56 kg

Power

400 W
