AGGREGATE
GENERAL AND GEOMETRICAL PROPERTIES OF AGGREGATES
PRODUCT CATEGORY
Motorised Sieve Shakers
| AG1172 | Sieve Shaker for 200/300 mm Sieves, 220 V 50-60 Hz |
| AG1172/110 | Sieve Shaker for 200/300 mm Sieves, 110 V 60 Hz |
Standards: EN 932-5 | ISO 565, 3310-1, 3310-2 | ASTM E11, 323 | BS 410-1, 410-2
| AG1172 | Sieve Shaker for 200/300 mm Sieves, 220 V 50-60 Hz |
| AG1172/110 | Sieve Shaker for 200/300 mm Sieves, 110 V 60 Hz |
Standards: EN 932-5 | ISO 565, 3310-1, 3310-2 | ASTM E11, 323 | BS 410-1, 410-2

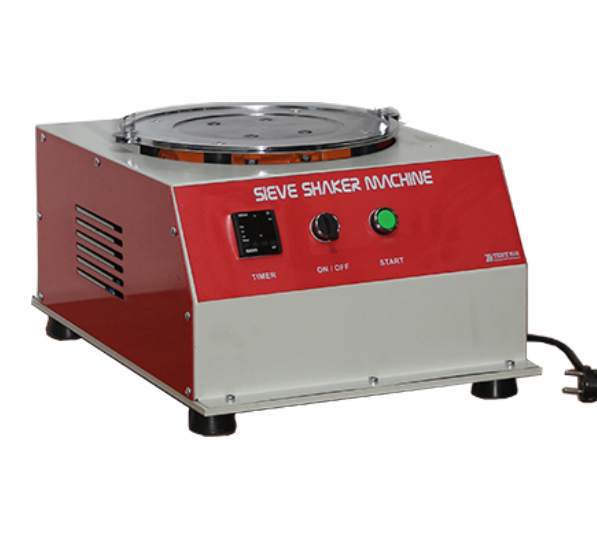

Motorised Sieve Shakers
The Testmak Motorised Sieve Shakers impart a circular motion to the material being sieved so that it makes a slow progression over the surface of the sieve.
The Sieve Shaker is equipped with a dynamic power source which ensures the right vibration is imparted to the sieves and sample for fast, accurate and reproducible tests.
The Sieve Shakers are fitted with a very efficient clamping device that ensures sieves are held firmly without over-tightening and allows them to be quickly removed and replaced. The timer can be preset for any duration up to 60 minutes.
Technical Specifications for Motorised Sieve Shakers
Sieve Capacity |
15 pieces of 200 mm or 203 mm sieves + pan and cover 10 pieces of 300 mm or 315 mm sieves + pan and cover |
|---|---|
Dimensions |
510x510x360 mm |
Weight (approx) |
65 kg |
Power |
250 W |
