B1640/15 | Marshall Water Bath, 15 L, 220-240V 50/60 Hz |
B1640/30 | Marshall Water Bath, 30 L, 220-240V 50/60 Hz |
B1640/48 | Marshall Water Bath, 48 L, 220-240V 50/60 Hz |
B1640/15CS | Marshall Water Bath with Cooler Unit, 15 L, 220-240V 50/60 Hz |
B1640/30CS | Marshall Water Bath with Cooler Unit, 30 L, 220-240V 50/60 Hz |
B1640/48CS | Marshall Water Bath with Cooler Unit, 48 L, 220-240V 50/60 Hz |
B1640/15 | Marshall Water Bath, 15 L, 220-240V 50/60 Hz |
B1640/30 | Marshall Water Bath, 30 L, 220-240V 50/60 Hz |
B1640/48 | Marshall Water Bath, 48 L, 220-240V 50/60 Hz |
B1640/15CS | Marshall Water Bath with Cooler Unit, 15 L, 220-240V 50/60 Hz |
B1640/30CS | Marshall Water Bath with Cooler Unit, 30 L, 220-240V 50/60 Hz |
B1640/48CS | Marshall Water Bath with Cooler Unit, 48 L, 220-240V 50/60 Hz |

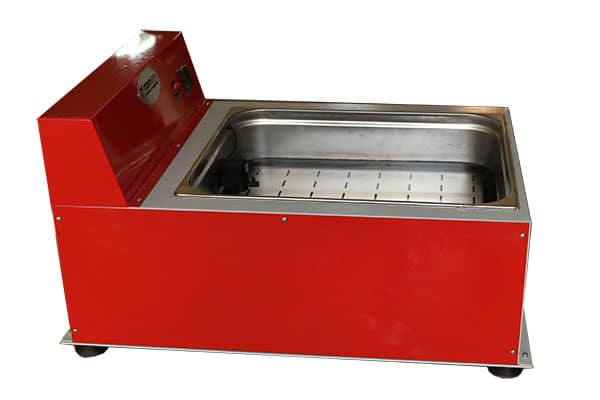

The Marshall Water Baths are specifically designed for conditioning of marshall stability samples from ambient temperature to 60°C ±1%.
15, 30 and 48 lt. tank capacity models are available and can be ordered with or without cooler units. Water bath is working temperature range is from ambient to 95°C. Internal surfaces are polished stainless steel with a sheet steel insulated outercase.
The EN 12697-23 covering the determination of the strength of bituminous mixtures, prescribe a water conditioning temperature of 5°C or from 5 to 25°C which are obtainable with a cooling system. Water bath are used for asphalt (marshall, bitumen testing), cement (curing on conditioning) applications.The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity.
P.Code |
Capacity |
Int. Dimensions |
Ext. Dimensions |
Temperature Range |
Weight (approx.) |
---|---|---|---|---|---|
B1640/15 |
15 Liters |
160x330x300 mm |
300x500x360 mm |
for ambient to +90°C ± 1°C |
15 kg |
B1640/30 |
30 Liters |
160x520x250 mm |
300x700x380 mm |
for ambient to +90°C ± 1°C |
18 kg |
B1640/48 |
48 Liters |
160x620x500 mm |
300x820x600 mm |
for ambient to +90°C ± 1°C |
25 kg |
B1640/15CS |
15 Liters |
160x330x300 mm |
625x400x600 mm |
+5°C to +70°C± 0,5°C |
26 kg |
B1640/30CS |
30 Liters |
160x510x300 mm |
625x400x760 mm |
+5°C to +70°C± 0,5°C |
36 kg |
B1640/48CS |
48 Liters |
160x620x510 mm |
650x620x900 mm |
+5°C to +70°C± 0,5°C |
48 kg |
