Double Wheel Tracker
| B1940 | Double Wheel Tracker (Automated Rut Tester) - 380-400 V 50 Hz |
ORIGIN: TÜRKİYE
Standards: EN 12697-22
| B1940 | Double Wheel Tracker (Automated Rut Tester) - 380-400 V 50 Hz |
ORIGIN: TÜRKİYE
Standards: EN 12697-22

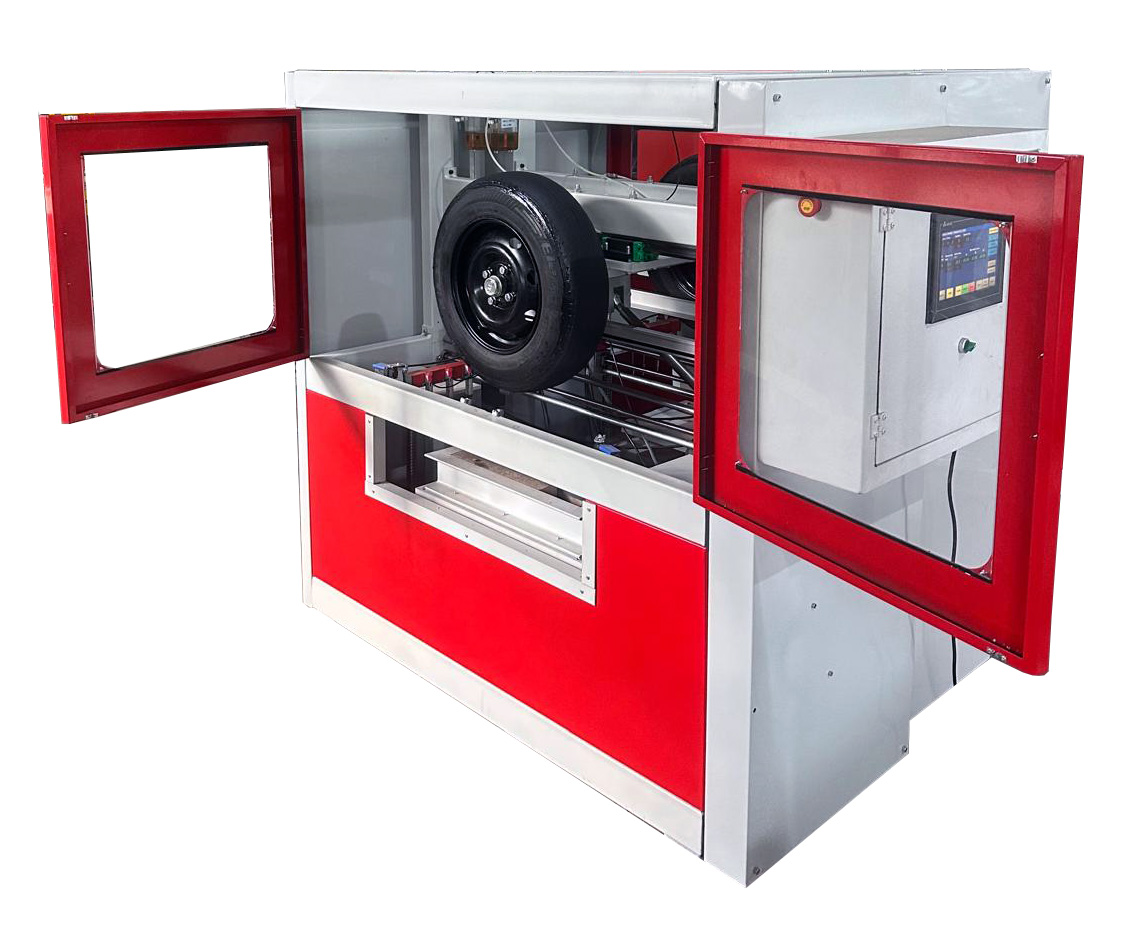

Double Wheel Tracker
This machine determines the deformation of bituminous material by measuring the depth of the rut caused by the repeated passage of a rolling load—at a fixed temperature—over a sample compacted in a mold, in accordance with standard EN 12697-22.
General Features:
• Two smooth-tread (non-patterned) wheels.
• A pneumatic cylinder applying a 5,000 N load.
• A system for moving the wheel longitudinally over a distance of 410 mm at a frequency of 1 Hz.
• Mold holder for the pre-compacted sample.
• Assembly housed within an aluminum profile structure forming a temperature-controlled chamber.
• Capability to perform research-grade testing thanks to numerous adjustable parameters (temperature up to 80°C, number of measurement stages, measurement point locations, threshold adjustments, etc.).
• Continuous measurement of sample deformation caused by the wheel`s action on the material using a displacement sensor.
• Device equipped with 3 displacement sensors to measure rut depth after each series of cycles.
• Automatic measurement eliminates the need for monitoring and manual intervention at each measurement stage.
• Option to pause the test at any time.

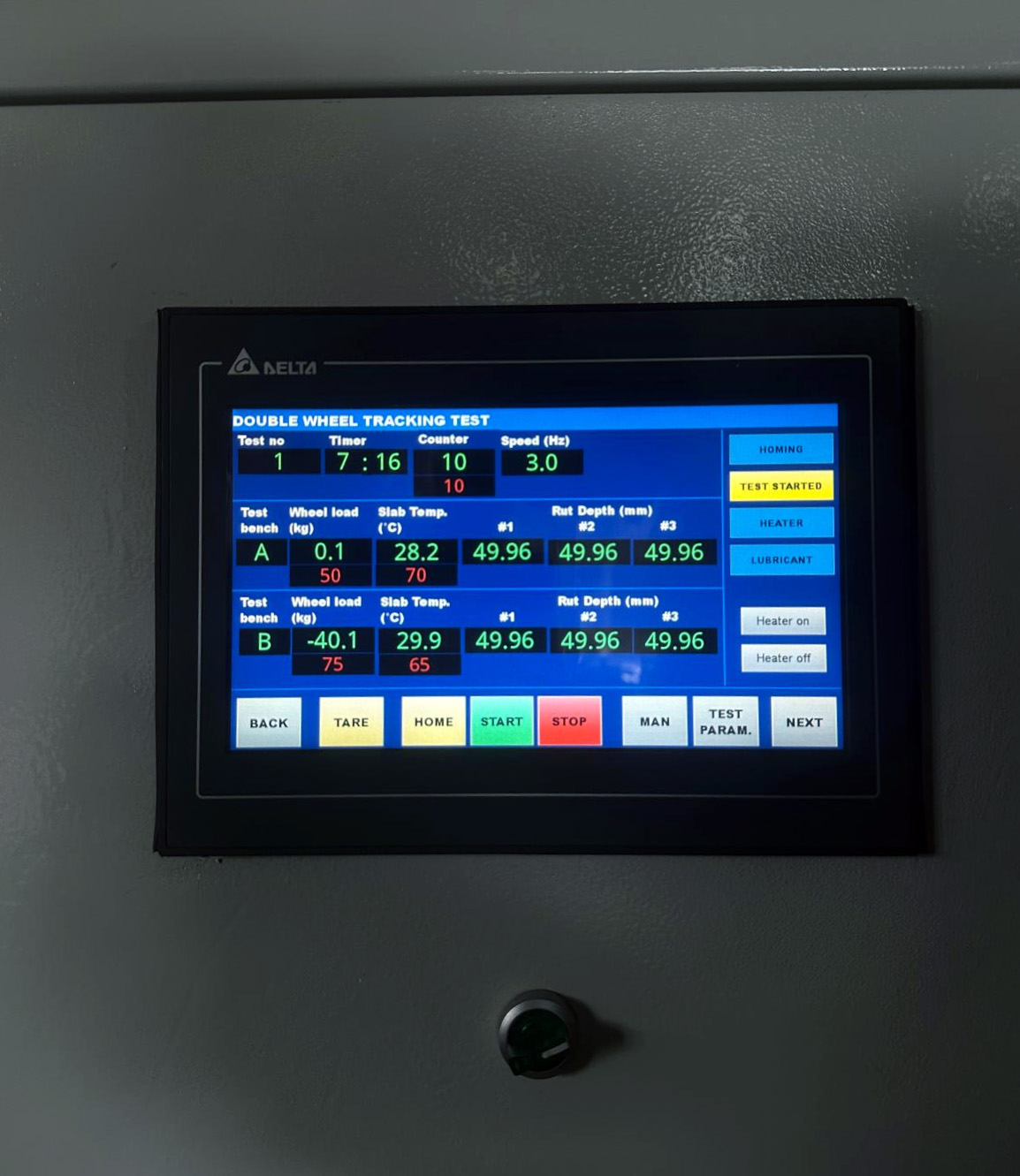

• Dedicated software for setting test conditions (chamber and specimen temperatures, table movement frequency, etc.) and for real-time graphical monitoring of rut depth progression over time.
• Computer-controlled.
• Requires a compressed air supply (dried and filtered).
Technical Specifications for Double Wheel Tracker
| Wheel load | 5,000 N |
|---|---|
| Movement frequency | 1 cycle per second |
| Measurable rut depth | 25 mm |
| Rut measurement | 15 automatic points, 3 sensors/specimen |
| Temperature range | Ambient to 80°C |
| Nominal pressure | 0.7 MPa (7 bar) |
| Maximum pressure | 1 MPa (10 bar) |
| Warm-up time | ~4 h at 60°C – programmable |
| Temperature monitoring | Pt100 probe |
| Power supply | Three-phase 400 V, 50 Hz or 60 Hz – 16 A |
| Dimensions | 1600 x 1800 x 2100 mm |
| Weight (approx.) | 1,400 kg |
