COMPACTADORA AUTOMÁTICA MARSHALL DE ASTM ESTÁNDAR
|
TMB-1540A |
Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 220-240 V 50/60 Hz |
|
TMB-1540A/110 |
Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 110 V 60 Hz |
|
TMB-1541A |
Automatic Marshall Impact Compactor ASTM Std for 6" dia. specimens, 220-240 V 50/60 Hz |
|
TMB-1541A/110 |
Automatic Marshall Impact Compactor ASTM Std for 6" dia. specimens, 110 V 60 Hz |
|
TMB-1540SC |
Soundproof Safety Cabinet for Marshall Compactors |
|
TMB-1548 |
Marshall Mould, Ø 102 dia. and 50 mm height |
|
TMB-1549 |
Marshall Mould, Ø 154 dia. and 50 mm height |
Estándares: ASTM D1559 | AASHTO T245 | ASTM D6926
|
TMB-1540A |
Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 220-240 V 50/60 Hz |
|
TMB-1540A/110 |
Automatic Marshall Impact Compactor ASTM Std for 4" dia. specimens, 110 V 60 Hz |
|
TMB-1541A |
Automatic Marshall Impact Compactor ASTM Std for 6" dia. specimens, 220-240 V 50/60 Hz |
|
TMB-1541A/110 |
Automatic Marshall Impact Compactor ASTM Std for 6" dia. specimens, 110 V 60 Hz |
|
TMB-1540SC |
Soundproof Safety Cabinet for Marshall Compactors |
|
TMB-1548 |
Marshall Mould, Ø 102 dia. and 50 mm height |
|
TMB-1549 |
Marshall Mould, Ø 154 dia. and 50 mm height |
Estándares: ASTM D1559 | AASHTO T245 | ASTM D6926

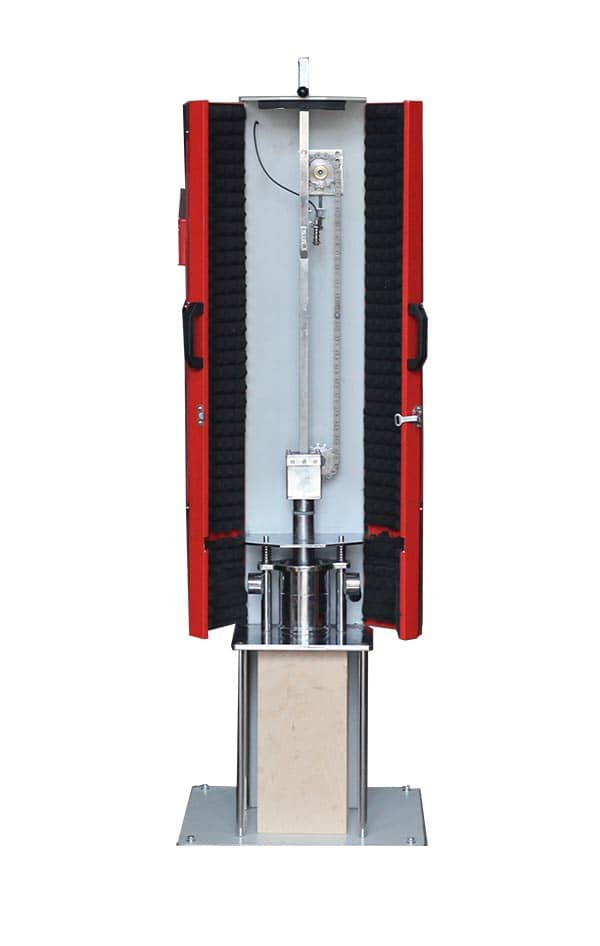

COMPACTADORA AUTOMÁTICA MARSHALL DE ASTM ESTÁNDAR
The Astm Standard Automatic Marshall Compactor is automatically compacts the sample and stops after the preset number of blows. The mould is held in position by a quick and practical clamping device. The 4536 ± 9 g sliding hammer falls at the 457 ± 3 mm distance for every blow. Automatic control Complete protection for operator safety to CE prescriptions.
Digital console incorporating the emergency stop button to CE prescriptions. System stops automatically for safety when opened compactor cover.
The unit incorporates a compaction pedestal, comprising a laminate block secured to by a 300 mm square x 25 mm thick steel plate. The compactor can be factory installed inside the soundproof and CE security cabinet.
Especificaciones Técnicas de COMPACTADORA AUTOMÁTICA MARSHALL DE ASTM ESTÁNDAR
Hammer Weight |
4536 ± 9 g |
|---|---|
Free Fall Height |
457 ± 3 mm |
Tamping Face Diameter |
98,5 mm |
Laminated Block Dimensions |
200x200x450 mm |
Blows Frequency |
55 ± 5 |
Dimensions |
400x450x1870 mm |
Weight (approx) |
140 kg |
Power |
370 W |
